Air spring leaks
The rubber bellows in each air spring dry out and crack over time, especially in Dubai heat. This is the most common Bentley suspension fault and usually shows as one corner sitting low.
Bentley Suspension Specialist · Dubai
Bentley Suspension Repair Dubai – Air Springs, Struts & Control Arms
We repair every part of it with genuine parts and precise calibration, so your Bentley rides as Crewe intended.
Every Bentley
we service
we service
- Bentley Continental GT
- Bentley Continental GTC
- Bentley Flying Spur
- Bentley Bentayga
- Bentley Bentayga Hybrid
- Bentley Mulsanne
- Bentley Arnage
- Bentley Brooklands

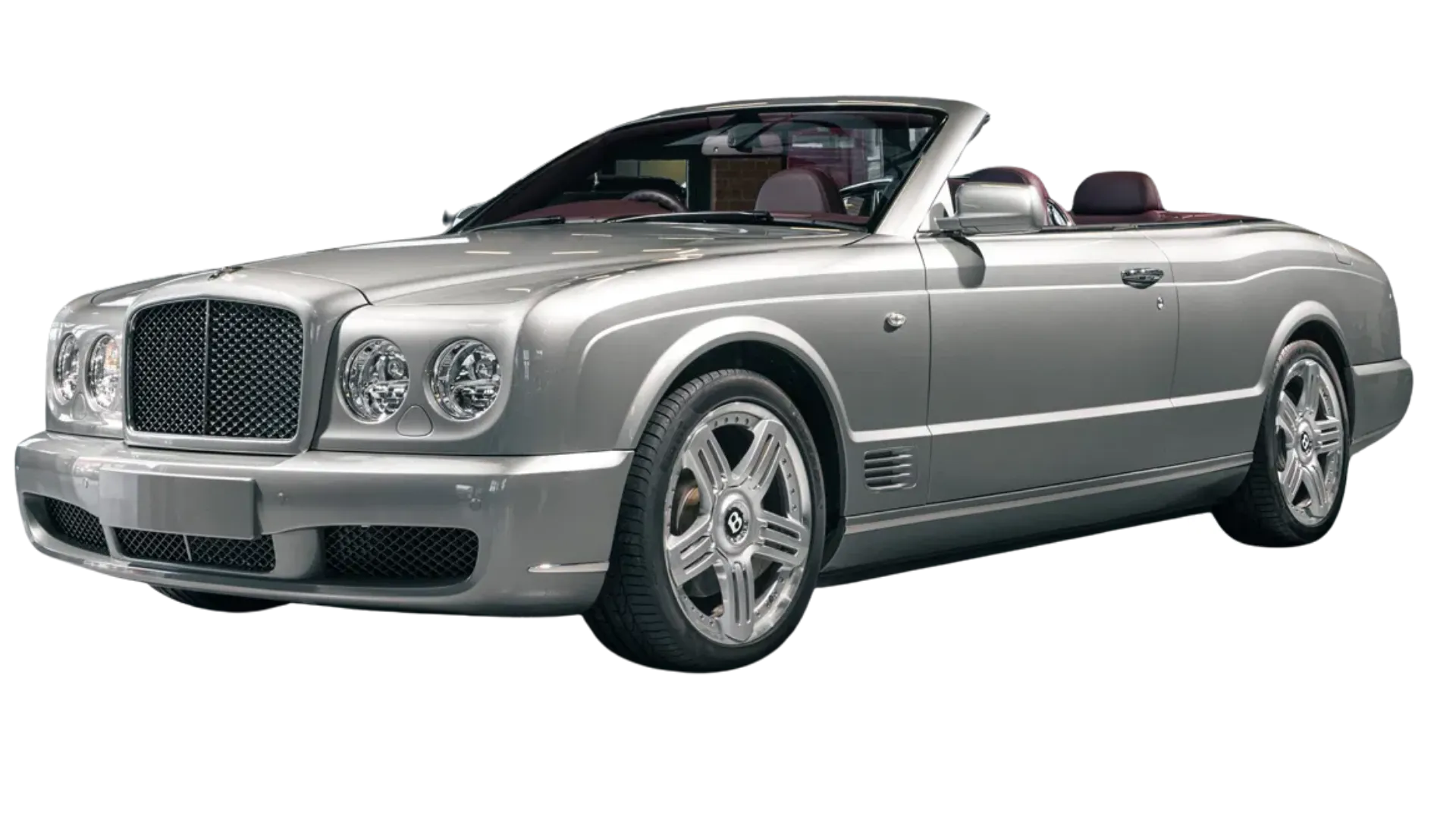

- Bentley Azure
2+ tonnes Weight carried by a Bentley’s suspension
A Bentley weighs over two tonnes yet rides like a limousine, thanks to air springs, adaptive dampers and 48V anti-roll control.
- Air suspension diagnostics
- Air springs and compressors
- Control arms and bushings
- Ride-height calibration
Known weak points
Common Suspension Issues in Bentleys
Most Bentley suspension problems come from a few well-known weak points. Knowing them helps you act before a small fault turns into a costly repair.
Compressor failure
The compressor often fails as a result of an untreated leak, because it runs too long trying to keep the car level. Moisture and sand entering the system also wear it out faster.
Worn control arm bushings
Bentley’s heavy weight puts constant load on the front lower arm bushings. Once they split, the car may clunk over bumps, pull under braking and wear tyres unevenly.
Anti-roll system faults
On models with Bentley Dynamic Ride, actuator or wiring faults can cause body lean and warning lights. Worn stabilizer links on all models create rattles over speed bumps.
Ride-height sensor faults
Damaged or misaligned sensors send wrong readings to the control unit. The car may then sit too high, too low or uneven, even when the air springs are healthy.
Warning signs
Signs Your Bentley Needs Suspension Repair
Most Bentley suspension faults give a warning long before they leave you stranded. Book an inspection if you notice any of these:
| Symptom | Likely Cause |
|---|---|
| One corner sits low after parking overnight | Leaking air spring or valve block |
| “Chassis fault” or “Suspension fault” message | Sensor, compressor or air leak fault |
| Compressor runs often or for a long time | Air leak, worn compressor or blocked dryer |
| Clunk over speed bumps | Worn stabilizer links, ball joints or bushings |
| Car bounces or floats after bumps | Worn shock absorbers or struts |
| Body leans more than usual in corners | Anti-roll bar actuator or link fault |
| Steering wheel off-centre or car pulls | Worn control arm bushings, alignment out |
| Uneven or inner-edge tyre wear | Bent arm, worn bushings or wrong ride height |
| Knocking or creaking on full lock | Strut top mount or ball joint wear |
A low corner is the most urgent sign. When one air spring loses pressure, the compressor works harder to refill it and can overheat and fail. Fixing a single leaking spring early usually costs far less than replacing the spring and the compressor together.
What we repair
Our Bentley Suspension Repair Services in Dubai
We cover every part of the Bentley chassis, from the air system to the smallest rubber bushing. Each service below includes a diagnostic scan, genuine or OEM-grade parts, and a post-repair test.
01
Bentley Air Suspension Services
Bentley Air Suspension Repair Dubai
Air suspension is the heart of Bentley ride comfort and its most common fault area. We pressure-test the system, check valve blocks, air lines and sensors, and read live control-unit data.
Bentley Air Spring Replacement Dubai
Air springs are rubber bellows that crack with age and heat, making one corner drop. We fit genuine or OEM-grade springs and advise pair replacement to keep the car level and balanced.
Bentley Air Suspension Compressor Replacement Dubai
The compressor is often the second part to fail after an untreated air leak. We test its output, replace the compressor and relay, and fix the original leak to protect the new unit.
02
Bentley Control Arm and Joint Services
Bentley Control Arm Replacement Dubai
Bentley's aluminium control arms can bend after a hard pothole or kerb strike, wearing tyres fast. We inspect upper and lower arms and replace damaged ones with matched parts and full alignment.
Bentley Control Arm Repair Dubai
Not every worn arm needs full replacement if its body is straight and sound. We renew the bushings or ball joints instead, lowering cost while restoring precise steering and a quiet ride.
Bentley Ball Joint Replacement Dubai
Worn ball joints cause knocking over bumps and looseness in the steering wheel. Because a failed joint can separate, we treat any play as a safety issue and replace it promptly.
03
Bentley Anti-Roll and Bushing Services
Bentley Bushings Replacement Dubai
Worn bushings cause clunks, vague steering and a pull under braking on heavy Bentleys. We fit new bushings and tighten them at normal ride height so they don't twist and fail early.
Bentley Stabilizer Link Replacement Dubai
Stabilizer links connect the anti-roll bar to the suspension and often rattle over speed bumps. Replacement is quick, and we inspect the anti-roll bar bushes at the same time.
Bentley Anti-Roll Bar Repair Dubai
On Dynamic Ride models, anti-roll bars use electric actuators running on a 48-volt system. We isolate the circuit safely, diagnose the actuator, and repair or replace the bar and links.
04
Bentley Shock, Strut and Mount Services
Bentley Shock Absorber Repair Dubai
Worn adaptive dampers make the car float, nose-dive under braking and bounce after bumps. We test damper response electronically and replace units in axle pairs for balanced, stable handling.
Bentley Strut Replacement and Strut Repair Dubai
Many Bentleys combine the air spring and damper into one air strut assembly. We replace the full strut when both are worn, or repair only the failed bellow, mount or seal.
Bentley Suspension Mount Replacement Dubai
Worn top and subframe mounts cause knocks when turning, vibration and a loose feel. We replace them with correct parts and torque every fixing to Bentley's factory specification.
Built for the heat
Why Dubai Conditions Wear Bentley Suspension Faster
Bentley suspension in the UAE faces conditions that European service intervals do not fully allow for.
Extreme heat
UAE summer temperatures reached 51.2°C in August 2026, and coastal Dubai regularly sits in the low 40s. Road surfaces get much hotter than the air. Rubber air springs and bushings harden and crack faster in this heat, and compressors run hotter with every cycle.
Sand and dust
Fine sand enters air-line fittings and compressor intakes, wears seals and clogs the air dryer. Cars parked near construction sites or desert roads are most affected.
Speed bumps and kerbs
Frequent speed bumps in residential areas and malls load stabilizer links, ball joints and front bushings on every pass. Low-profile tyres on 21 and 22-inch wheels pass more of that force into the suspension.
Long parking periods
Cars left for weeks in summer often show air leaks on return, because pressure drops slowly and seals dry out. A quick ride-height check after a long trip abroad can catch this early.
For Dubai owners, we recommend a suspension check every 10,000 km or once a year, and before every summer.
How it works
Our Bentley Suspension Repair Process
-
1
1. Booking and pickup
Call or WhatsApp us; we can collect your Bentley from home or office anywhere in Dubai. Tell us the symptoms you've noticed so our technicians can prepare before your car arrives.
-
2
2. Diagnostic scan
We read fault codes and live data from the suspension and chassis control units. This shows us exactly which sensor, valve or actuator is reporting a problem.
-
3
3. Ride-height and leak test
We measure each corner, pressure-test the air system and check for overnight drop. Even slow leaks that take hours to show are found at this stage.
-
4
4. Lift inspection
Technicians check arms, bushings, ball joints, links, mounts and dampers. Hidden wear like cracked rubber or loose joints is spotted before it causes bigger damage.
-
5
5. Written quote
You get photos, findings and a clear price before any work begins. Nothing is repaired without your approval, so there are no surprises on the bill.
-
6
6. Repair
Genuine or OEM-grade parts are fitted and torqued to Bentley specification. Paired parts like air springs and dampers are replaced together when needed for balanced handling.
-
7
7. Calibration and alignment
We recalibrate ride height and set four-wheel alignment. This keeps your Bentley level and protects your tires from uneven wear.
-
8
8. Road test and handover
A final drive confirms a level stance, no warnings and no noises, and you receive a service report and warranty. We also explain what to watch for so you can catch any future issue early.
Every Bentley
Bentley Models We Service
| Model | Variants Covered | Common Suspension Work |
|---|---|---|
 Continental GT | All generations, including GT Speed | Air struts, three-chamber air springs, control arm bushings |
| Continental GTC | Convertible, all generations | Air springs, compressor, anti-roll actuators |
 Flying Spur | V8, W12 and Hybrid | Rear air springs, bushings, ride-height sensors |
 Bentayga | V8, Speed, Hybrid, EWB and Azure | Compressor, air springs, 48V Dynamic Ride actuators |
 Mulsanne | Standard, Speed and EWB | Heavy-load air springs, ball joints, bushings |
 Classic models | Arnage, Azure and Brooklands | Shock absorbers, bushings, suspension mounts |
Why owners choose us
Why Choose Bentley Repair Dubai
Bentley-only focus
Our technicians work on Bentleys every day and know the common faults on each model. This experience means faster diagnosis and fewer guesswork repairs.
Dealer-level diagnostics
Bentley-compatible software to read codes, view live data and calibrate ride height. You get the same accuracy as a main dealer without the dealer price.
48V-safe workshop
Technicians are trained to isolate and test the Dynamic Ride circuit safely. This protects both your car's electronics and the people working on it.
Genuine and OEM-grade parts
You choose; we explain the price and warranty difference clearly. Either way, every part meets Bentley's fit and quality standards.
Photo and video reports
You see the worn part before you approve the repair. This keeps every decision in your hands, even if you can't visit the workshop.
Alignment included
Every suspension repair ends with calibration and four-wheel alignment. Your tyres wear evenly and your Bentley tracks straight from the first drive.
FAQ
Frequently Asked Questions
Can’t find your answer? Talk to a technician directly.
+971 50 000 0000Why is my Bentley sitting low on one side?
A Bentley that drops at one corner usually has a leaking air spring, air line or valve block. The car loses pressure while parked and the compressor lifts it again when started. Get it checked quickly, because constant refilling can overheat and destroy the compressor.
Is it safe to drive a Bentley with a suspension warning light?
You can usually drive short distances at low speed, but you should not ignore it. A low ride height can damage tyres, arms and the underbody, and handling may be unpredictable. Book a diagnostic scan as soon as possible.
How long does Bentley suspension repair take in Dubai?
Simple jobs like stabilizer links or a single air spring are often done the same day. Compressor, control arm or full strut replacements typically take one to two days, depending on parts availability. Calibration and alignment are included in that time.
Should air springs be replaced in pairs?
In most cases, yes. If one air spring has failed from age, the opposite spring is the same age and has faced the same heat. Replacing both keeps ride height and damping equal on each side of the axle.
Can a Bentley air suspension be converted to coil springs?
Conversion kits exist, but they remove the adaptive ride, variable height and much of the comfort Bentley engineered. They can also trigger warnings and affect resale value. We recommend repairing the air system rather than converting it.
Do you use genuine Bentley parts?
We offer genuine Bentley parts and OEM-grade parts made by the original suppliers. We show you both prices and warranty terms so you can choose what suits your car and budget.
What is a Bentley Dynamic Ride and can you repair it?
Bentley Dynamic Ride is the 48-volt active anti-roll system on the Bentayga and newer Continental GT and Flying Spur models. It uses electric motors in the anti-roll bars to keep the car flat in corners. Our technicians are trained to diagnose and repair its actuators, wiring and control units safely.
How often should I check my Bentley suspension in Dubai?
We recommend an inspection every 10,000 km or once a year, plus a check before summer. Dubai heat, sand and speed bumps wear rubber parts faster than in cooler climates.
Book today
Book Your Bentley Suspension Repair in Dubai
A level, quiet, composed ride is what you paid for in a Bentley. If your car is sitting low, knocking over bumps or showing a chassis warning, our specialists can find the cause and fix it properly the first time. Call or WhatsApp Bentley Repair Dubai today to book a suspension inspection, with free pickup and delivery anywhere in Dubai.
-
Opening hoursOpen 24/7, including weekends and public holidays
-
WhatsAppSend us your symptoms
